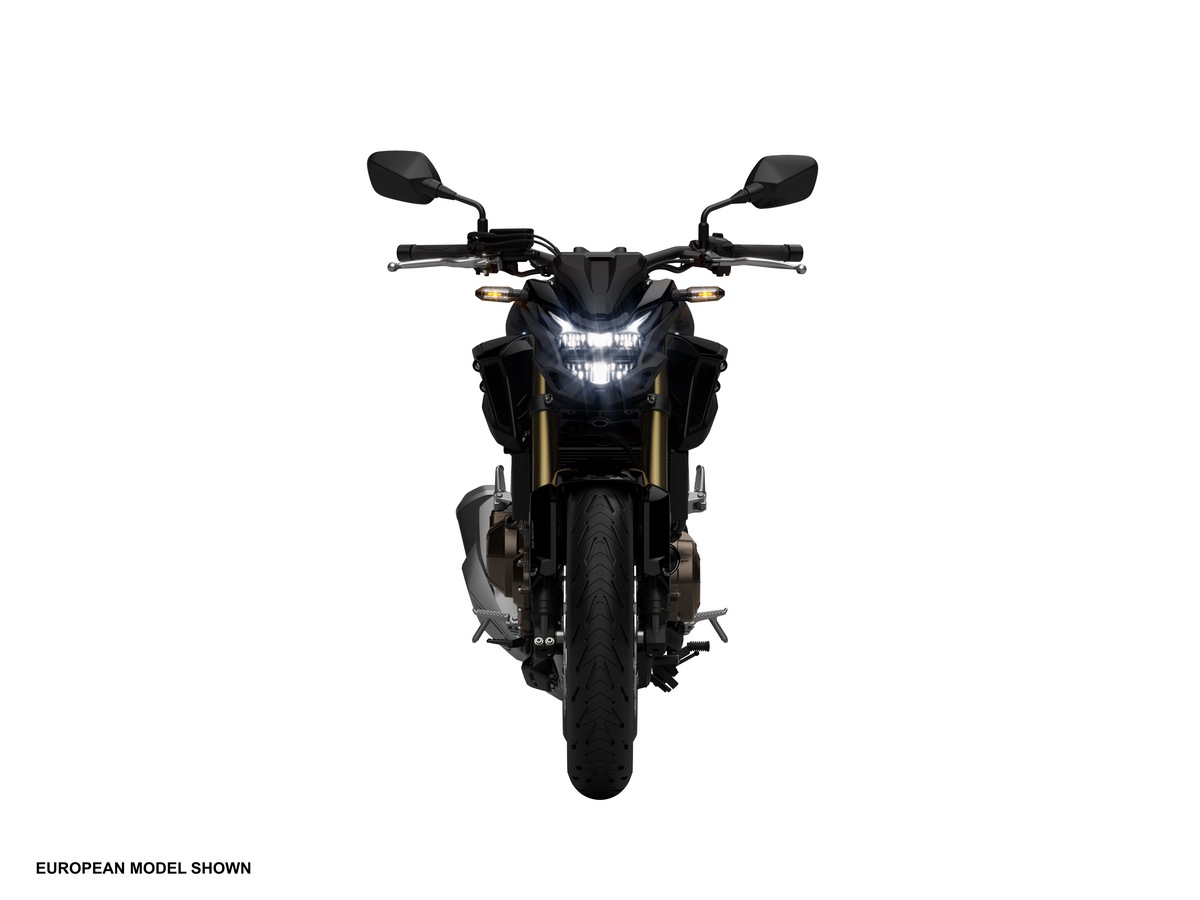

The 2023 Honda CB500F: All Around Athlete
Within the 2023 Honda lineup are the infamous 500 twins, and this is Honda’s Naked 500 twin, the CB500F. An all-around athlete may be the best description for the CB500F since it is a combination of the best virtues of the Japanese builder’s family of 500s.
Light, narrow, and powerful, it just strikes the perfect balance of what a mid-sized motorcycle engine should be. The CB500F draws 47 hp from the 471cc, liquid-cooled parallel-twin engine and sends it to the rear tire, controlled via the Pro-Link® single shock with nine-position spring-preload adjustability.

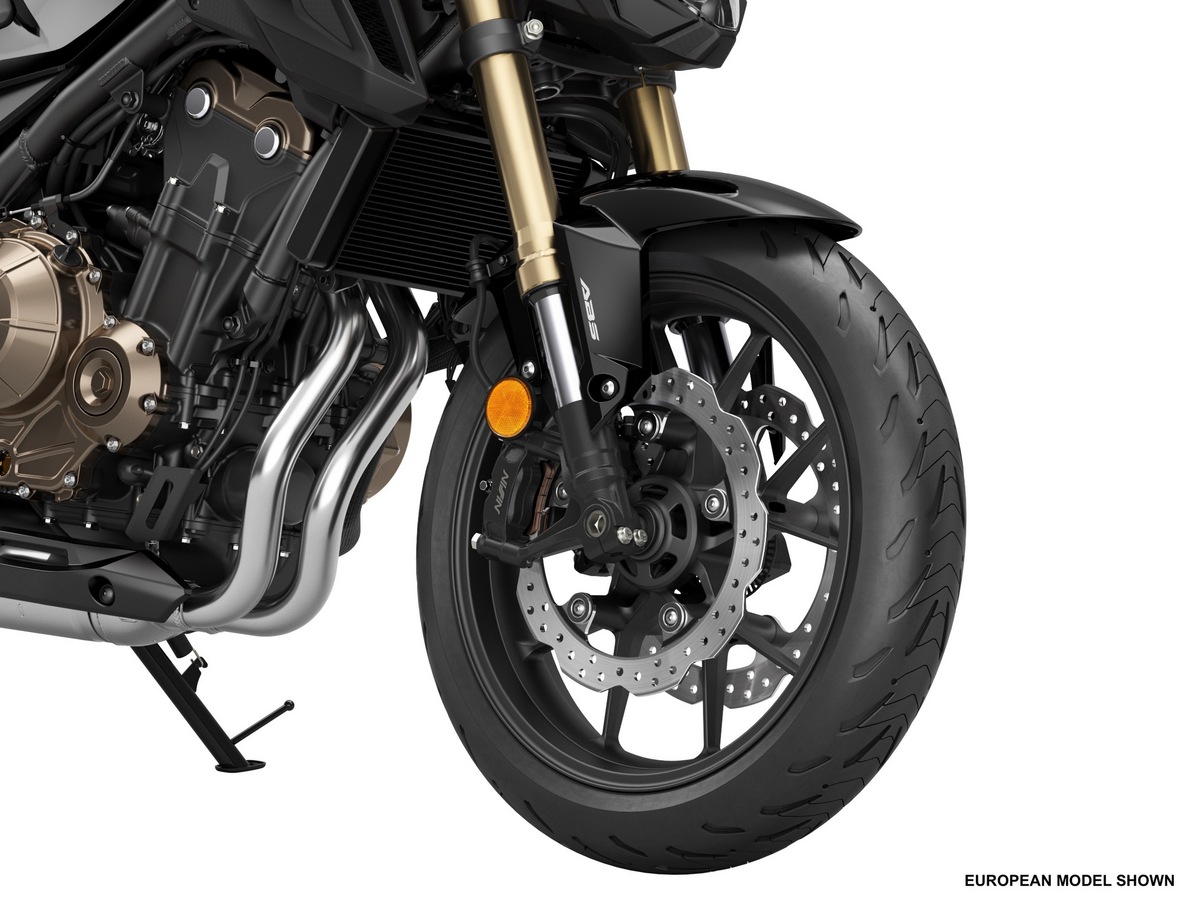

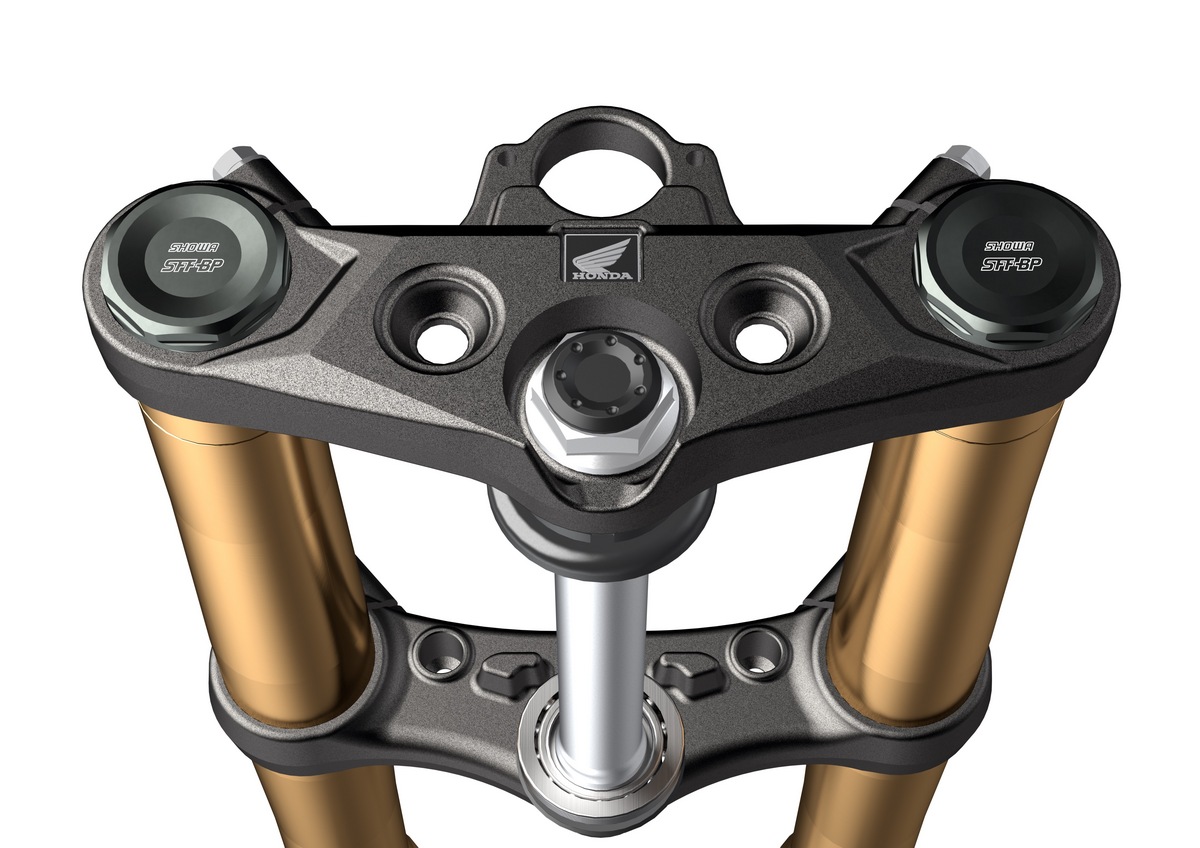

The comfortable seating position allows riders to carve the Honda CB500F through the turns with confidence thanks to the 41mm Showa SFF-BP front fork. Honda does a great job keeping the rider in control by including ABS braking and a slipper clutch. All-around athlete makes a lot more sense now, doesn’t it?
The 2023 Honda CB500F starts at $6,799 USD / $8,786 CAD.
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2023 Honda CB500F in one place.
Model Overview
2023 Honda CB500F Specifications
From Honda
ENGINE
Engine 471cc liquid-cooled parallel-twin four-stroke Power 46.9 BHP Bore x Stroke 67.0mm x 66.8mm Compression Ratio 10.7:1 Induction PGM-FI with 34mm throttle bodies Starter Valve Train DOHC; four valves per cylinder
DRIVETRAIN
Clutch Transmission Six-speed Final Drive O-ring-sealed chain; 15T/41T
CHASSIS
Suspension Front 41mm Showa SFF-BP fork; 4.7-inch travel Suspension Rear Pro-Link® single shock with nine-position spring-preload adjustability; 4.7-inch travel Brakes Front Dual 295mm discs with four-piston calipers; ABS Brakes Rear Single 240mm disc, ABS Tires Front 120/70R-17 radial Tires Rear 160/60-17 radial Fuel Tank Capacity 4.5 gallons Color Matte Gray Metallic
ELECTRICAL
Ignition Computer-controlled digital transistorized with electronic advance Spark Plugs Headlight Tail Light
DIMENSIONS
Overall Length Ground Clearance Trail 4.0 inches Wheelbase 55.5 inches Rake (Caster Angle) 25.5° Seat Height 31.1 inches Curb Weight 416 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride.)
WARRANTY
Warranty Transferable, unlimited-mileage limited warranty Extension Extended coverage available with a HondaCare Protection Plan®
2023 Honda CB500F Features
2023 Honda CB500F Photos
2023 Honda CB500F Videos
2023 HONDA CB500F _ Enjoy Riding Position technology
2023 HONDA CB500F, NEVER GETS OLD‼️
